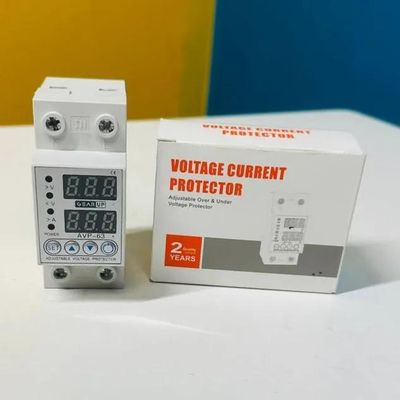

GearUP AVP-63 Automatic Voltage Protector in Bangladesh

Get The GearUP AVP-63 Automatic Voltage Protector-220V at DROPSHOP.COM.BD Enjoy top quality and unbeatable prices with the best customer service in Bangladesh

Key Functions

Protection Features

Over-voltage Protection: Cuts off power if voltage exceeds the set threshold (P-3).

Under-voltage Protection: Disconnects load if voltage drops below the set limit (P-5).

Over-current Protection: Trips when current surpasses the configured max (P-9) after a delay (P-10).

Automatic Recovery: Restores power after fault conditions (adjustable via P-15).

Fast Power-Down: Emergency cutoff (enabled via P-14).

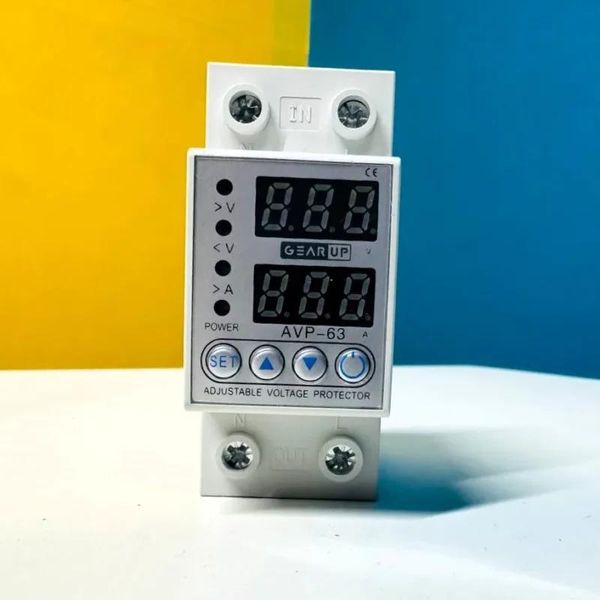

Monitoring & Display

Real-time voltage display (AC/DC).

Real-time current display (AC only; DC mode shows voltage only).

Indicators for faults (>V, <V, >A) and normal operation (POWER).

Programmable Settings

Adjustable thresholds for voltage/current, recovery times, and calibration (P-1 to P-17).

Password protection (P-17) to prevent unauthorized changes.

1. Technical Specifications
2. CategoryDetailsPower SupplyAC: 320V / DC: 80–300VFrequency50/60Hz (AC only)Voltage RangeAC: 80–300V (setting), 80–210V (operating) / DC: 130–300V (setting), 80–210V (operating)Max Current40A/63A (configurable)AccuracyVoltage: <1%Response TimeOvervoltage: 0.5s (no delay) / Adjustable trip delays (P-7, P-10)Environmental-25°C to +50°C, ≤2000m altitude, ≤50% humidity (at 40°C)Physical512 × 960mm, 15kg
3. Setup & Operation Guide
4. A. Initial Configuration

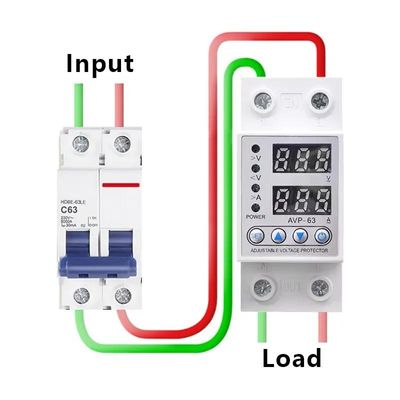

Power Connection:

Wire terminals (N-L) to AC/DC source within rated limits.

Menu Navigation:

Use front-panel buttons to adjust parameters (P-1 to P-17).

B. Critical Settings

ParameterPurposeDefaultRangeP-3/P-5Over/under-voltage thresholds300V/80VAC: 80–300V / DC: 130–300VP-9Max current limit63A14–63AP-15Auto-recovery after faultONON/OFFP-17Password lock000000–999

C. Calibration

Voltage: Adjust via P-8 (±10%).

Current: Calibrate with P-12 (±10%).

Frequency (AC only): Fine-tune with P-13 (±2.5%).

D. Safety & Recovery

Manual Reset: Required if auto-recovery (P-15) is disabled.

Event Logging: Overcurrent counts (P-11) track fault history.

1. Usage Notes

DC Mode: Current display disabled; only voltage monitored.

Energy Saving: Enable P-16 to reduce idle power consumption.

Altitude Warning: Performance may degrade above 2000m.

Note: Refer to the device’s manual for detailed wiring diagrams and safety compliance.
